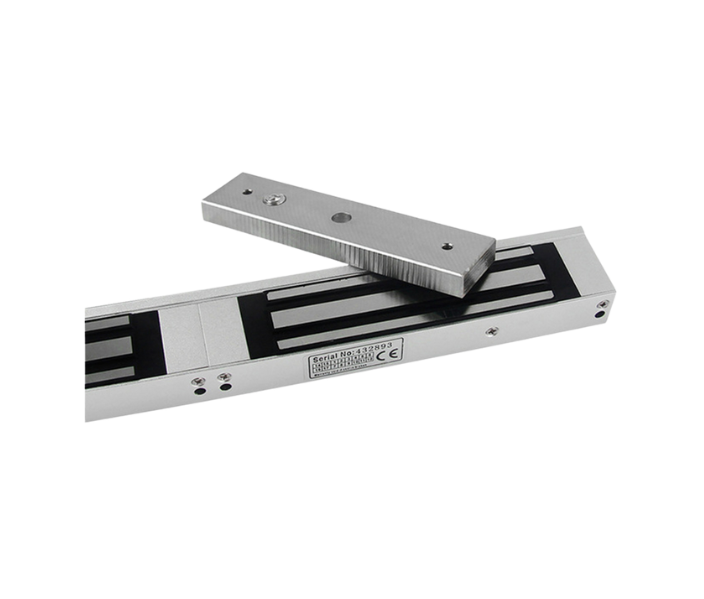

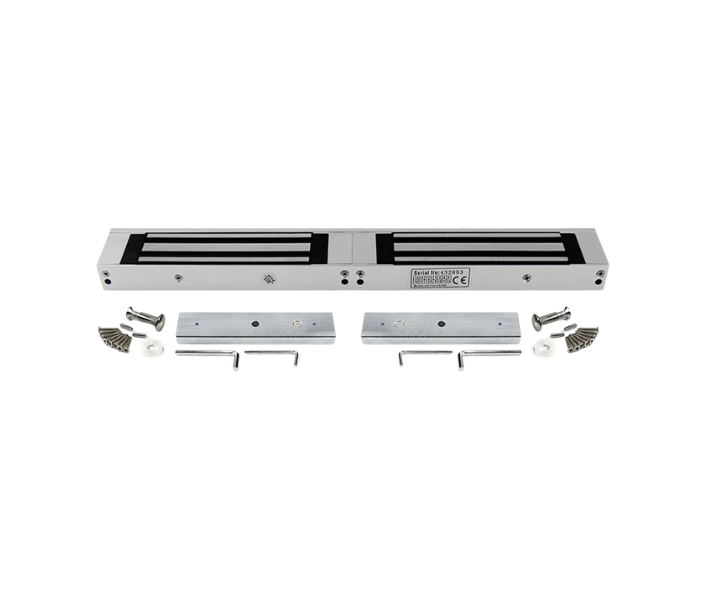

Double Door Electro-Magnetic Lock 300lbs

DDEL-3002B| DDEL-3002L | DDEL-3002STL2

Dotsykure DDEL-3002
Dotsykure DDEL-3002 - Image 2
Dotsykure DDEL-3002 - Image 3
Dotsykure DDEL-3002 - Image 4

At Dotsyl, our mission is simple — to create digital solutions that move businesses forward. In today’s fast-paced world, innovation isn’t a luxury, it’s a necessity. That’s why we combine creativity, technology, and strategy to help brands grow smarter, faster, and stronger. From software development to complete digital transformations, we take pride in delivering solutions that are not only efficient but meaningful — built to solve real business challenges and deliver measurable results. Every project we take on is a partnership, and every client is a collaborator in shaping what’s next. As the CEO, I believe success is built on three core values: trust, innovation, and excellence. These values drive every decision we make, every product we build, and every relationship we nurture. Thank you for choosing Dotsyl as your trusted digital partner. Together, let’s redefine possibilities and turn ideas into impact.

Testi MethodTesti flag
Ehtisham Hafeez
Co-Founder, Dotsyl Technologies

Dotsykure DDEL-3002

Dotsykure DDEL-3002

SKU: DDEL-3002B = Double Door Electro-Magnetic Lock 300lbs – Basic
SKU: DDEL-3002L = Double Door Electro-Magnetic Lock 300lbs – Single LED
SKU: DDEL-3002STL2 =Double Door Electro-Magnetic Lock 300lbs – Sensor, Time Delay, Dual LED
Category: Brand:

Description

Magnetic Lock 180KG is an advanced electromagnetic lock designed for enhanced access control in residential and commercial settings. With a dual-door holding force of 180kg x 2 (300Lbs x 2), this lock is ideal for securing wooden, glass, metal, and fireproof doors. It supports both DC12V and DC24V power inputs, with low current draws of 300mA x 2 (12V) or 150mA x 2 (24V) for energy efficiency. The lock features a fail-safe design that unlocks during power outages, ensuring safety. Equipped with LED indicators, a door sensor, and a customizable time delay function, it offers advanced functionality for access control systems. Constructed with an anodized aluminum shell and zinc-finished magnetic and armature components, this lock ensures durability and corrosion resistance, making it suitable for demanding environments.

Datasheet: Dotsykure DDEL-3002-Datasheet

Related Products

Related products

  • Dotsykure F0-BRT6

    Dotsykure F0-BRT6

  • Dotsykure U-BRT

    Dotsykure U-BRT

  • Dotsykure MEL-100

    Dotsykure MEL-100

  • Dotsykure DDEL-6002

    Dotsykure DDEL-6002

Magnetic Lock 180KG is an advanced electromagnetic lock designed for enhanced access control in residential and commercial settings. With a dual-door holding force of 180kg x 2 (300Lbs x 2), this lock is ideal for securing wooden, glass, metal, and fireproof doors. It supports both DC12V and DC24V power inputs, with low current draws of 300mA x 2 (12V) or 150mA x 2 (24V) for energy efficiency. The lock features a fail-safe design that unlocks during power outages, ensuring safety. Equipped with LED indicators, a door sensor, and a customizable time delay function, it offers advanced functionality for access control systems. Constructed with an anodized aluminum shell and zinc-finished magnetic and armature components, this lock ensures durability and corrosion resistance, making it suitable for demanding environments.

Datasheet: Dotsykure DDEL-3002-Datasheet
